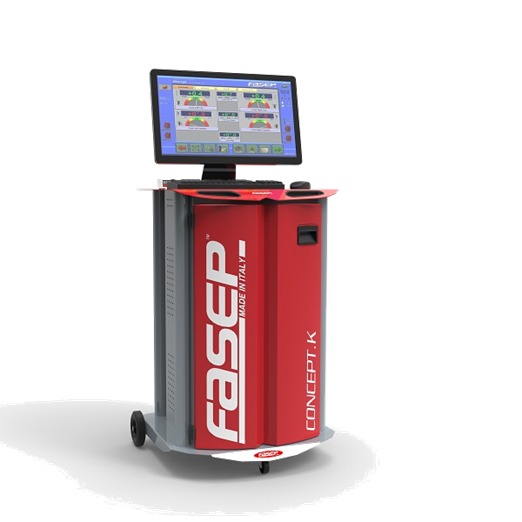

No Contact Wheel Alignment

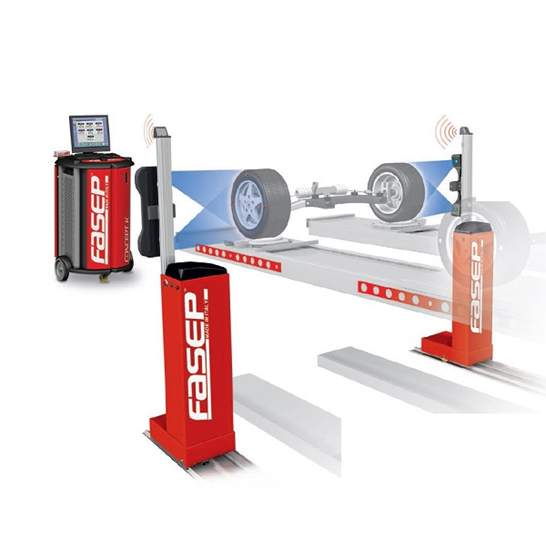

The innovative touchless measuring system with cameras.

• No target on the wheels needed
• No need to move vehicle back and forth compensate measurements
• Accuracy of measurements comparable to infrared technology (much better than traditional 3D accuracy)
• Automatic positioning of cameras

Technical Features

• Power supply 200-240V 50-60Hz
• Power Source max 500 W
• Wheel diameter 10 - 30”
• Measuring Accuracy 0,01° 0,3mm
• Measuring Range

           -Total toe ±20°

           -Single toe ±20°

           -Camber ±20°

           -Caster ±30°

           -Included angle ±40°

           -Lock angle ±80°

• Personal computer Intel Core i3
• Monitor / Video 19,5” LCD
• External interface USB+GIGA ETHERNET
• Max weight on turntables
• Car’s light duty 750kg
• Car’s heavy duty 1000kg
• Truck’s heavy duty 3500kg
• Available languages 23
